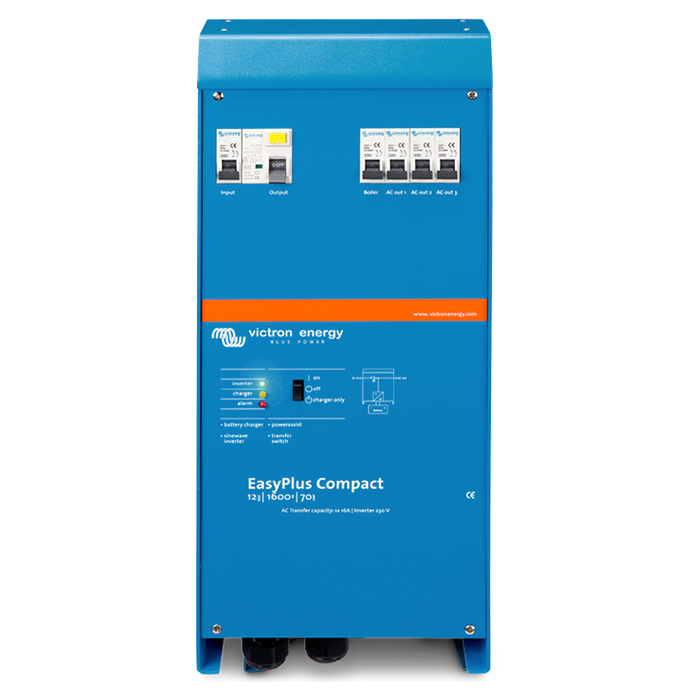

EasyPlus Compact 12/1600/70-16 230V VE.Bus
In stock
$ 961
In stock
The EasyPlus is a multifunctional energy system consisting of a powerful sine wave inverter, a sophisticated battery charger, a high speed AC transfer switch and AC distribution in a single light weight and compact enclosure. The system has been designed for those who want to enjoy the comfort and freedom of a complete energy system without spending time on the installation of separate components and difficult technical procedures.
Additional information
| Weight | 13 kg |
|---|---|
| Dimensions | 20 × 30 × 62 cm |
| batteryVoltageNominal | 12 V |
| powerControl | 1 |
| powerAssist | 1 |
| parallelOperation | 1 |
| threePhaseOperation | 1 |
| transferSwitchCurrentRating | 16 A |
| dCInputVoltageRange | [9.5, 17] VDC |
| aCOutputVoltage | 230 VAC |
| aCOutputFrequency | 50 Hz |
| contPowerVA25 | 1, 600 VA |
| contPowerW25 | 1, 300 W |
| contPowerW40 | 1, 200 W |
| contPowerW65 | 800 W |
| peakPowerRating | 3, 000 W |
| maxEfficiency | 93 % |
| zeroLoadPower | 8 W |
| zeroLoadPowerAES | 5 W |
| zeroLoadPowerSearch | 2 W |
| aCInputVoltageRange | [187, 265] VAC |
| aCInputFrequencyRange | [45, 65] Hz |
| powerFactor | 1 |
| chargeVoltageAbsorption | 14.4 VDC |
| chargeVoltageFloat | 13.8 VDC |
| chargeVoltageStorage | 13.2 VDC |
| chargeAlgorithm | Adaptive, 4-stage |
| maximumBatteryChargeCurrent | 70 A |
| temperatureSensor | Included |
| AuxiliaryOutput | 1 |
| programmableRelay | AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC |
| protections | Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple |
| communicationPort | VE.Bus |
| remoteTerminal | On / Off / Charger only |
| dIPSwitchesProgramming | 1 |
| computerProgramming | 1 |
| fanAssistCooling | 1 |
| maxHumidity | 95 % |
| remoteTerminalType | Screw terminal two pole |
| relayTerminal | Screw terminal 3-pole |
| material | Aluminium |
| colour | Blue (RAL 5012) |
| protectionCategory | IP20 |
| pollutionDegree | 2 |
| ovciiiIcw | 6kA 30mS |
| weight | 11.7 kg |
| height | 510 mm |
| width | 214 mm |
| depth | 110 mm |
| antiIslandingStandard | See our website |
