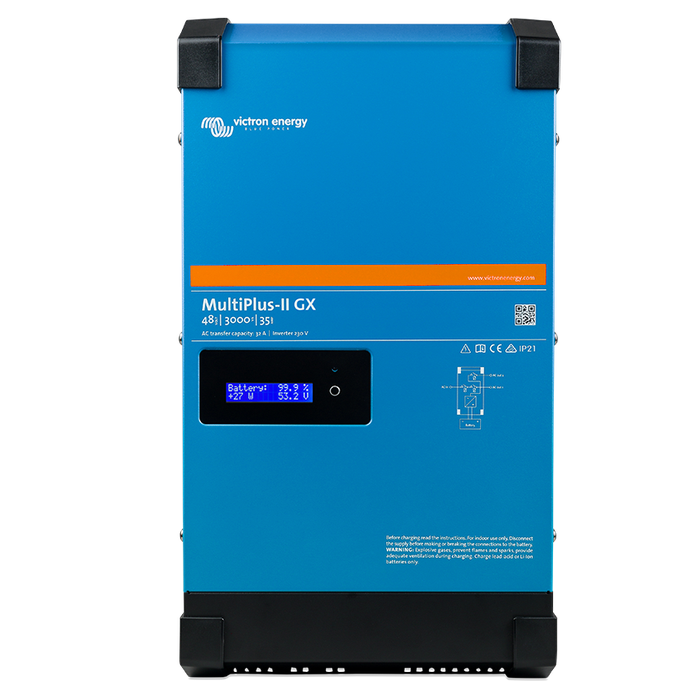

MultiPlus-II 48/5000/70-50 230V GX
In stock
$ 1.208
In stock
An Inverter/Charger with device networking built-in, the MultiPlus-II GX communicates with a solar charger, batteries, and other devices to control a grid-connected, off-grid, or remote power installation. Capable of parallel operation for increased power output, or battery charge-rates, the MultiPlus-II GX can also be configured for three-phase supply. A host of advanced features - such as uninterrupted power supply, setting load limits, and supplementing limited grid-power availability with battery power - can all be controlled straight from your phone or smart device. Remote monitoring is also possible.
Additional information
| Weight | 28,3 kg |
|---|---|
| Dimensions | 41,5 × 65,5 × 25,5 cm |
| batteryVoltageNominal | 48 V |
| powerControl | 1 |
| powerAssist | 1 |
| parallelOperation | 1 |
| threePhaseOperation | 1 |
| transferSwitchCurrentRating | 50 A |
| maxAcInputCurrent | 50 A |
| dCInputVoltageRange | [38, 66] VDC |
| aCOutputVoltage | 230 VAC |
| aCOutputFrequency | 50 Hz |
| contPowerVA25 | 5, 000 VA |
| contPowerW25 | 4, 000 W |
| contPowerW40 | 3, 700 W |
| contPowerW65 | 3, 000 W |
| peakPowerRating | 9, 000 W |
| maxAppFeedinPower | 5, 000 VA |
| maxEfficiency | 96 % |
| zeroLoadPower | 18 W |
| zeroLoadPowerAES | 12 W |
| zeroLoadPowerSearch | 2 W |
| aCInputVoltageRange | [187, 265] VAC |
| aCInputFrequencyRange | [45, 65] Hz |
| chargeVoltageAbsorption | 57.6 VDC |
| chargeVoltageFloat | 55.2 VDC |
| chargeVoltageStorage | 52.8 VDC |
| chargeAlgorithm | Adaptive, 4-stage |
| maximumBatteryChargeCurrent | 70 A |
| temperatureSensor | Included |
| AuxiliaryOutput | 1 |
| externalAcCurrentSensor | 50A or 100A (optional) |
| programmableRelay | AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC |
| protections | Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple |
| communicationPort | VE.Direct, VE.Bus, VE.Can, BMS-Can, WiFi, Ethernet |
| communicationPortGeneral | 1 |
| remoteTerminal | On / Off |
| computerProgramming | 1 |
| fanAssistCooling | 1 |
| maxHumidity | 95 % |
| maxAltitude | 2, 000 m |
| batteryConnectionTerminalType | M8 bolts |
| remoteTerminalType | Screw terminal two pole |
| relayTerminal | Screw terminal 3-pole |
| vebusTerminalType | Two RJ45 terminals |
| material | Steel |
| colour | Blue (RAL 5012) |
| protectionCategory | IP22 |
| weight | 31 kg |
| height | 565 mm |
| width | 323 mm |
| depth | 148 mm |
| safety | EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2 |
| emissionImmunity | EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3 |
| antiIslandingStandard | Please consult the certificates on our website |
| upsStandard | IEC 62040-1 |
