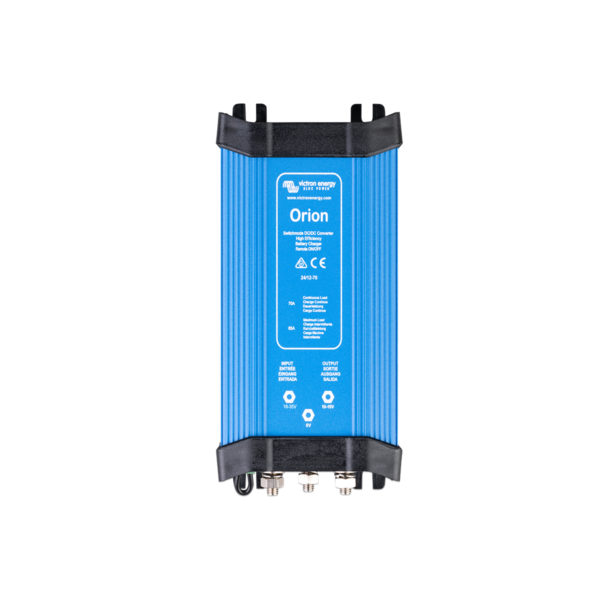

Orion 24/12-80 DC-DC converter IP20
Orion 24/12-80 DC-DC converter IP20

$133.00

Available on backorder

🔍
Orion 24/12-80 DC-DC converter IP20

Orion 24/12-80 DC-DC converter IP20

SKU: ORI241280020 Category: Brand:

$133.00

AvailableShips next business day
Extra Features
  • Premium Quality
  • Secure Payments
  • Satisfaction Guarantee
  • Worldwide Shipping
  • Money Back Guarantee
Guaranteed Safe Checkout

Remote on/off connector
The remote on/off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by the engine run/stop switch (see manual).

All models with adjustable output can also be used as a battery charger
For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.

All models with adjustable output can be paralleled to increase output current
Up to five units can be connected in parallel.

Weight2 lbs
Dimensions4.3 × 8.9 × 3.1 in
Dimensions (L x W x H mm)

110 x 225 x 80 mm

Input Voltage Range

[18, 35] V

Under Voltage Shutdown

14 V

Under Voltage Restart

18 V

Output Voltage Range

[10, 15] V

Continuous Output Current

80 A

Maximum Output Current

90 A

Output Derating Above40

3 %

Off Load Current

20 mA

Max Efficiency

92 %

Buffer Charge

1

Parallelable

1

Fan Assisted Cooling

1

Remote On Off Terminal

1

Dc Connection Terminal Type

M6 bolts

Remote On Off Terminal Connection

Removable multi-connector with screw terminals

Colour

Blue (RAL 5012)

Material

Aluminium

Protection Category

IP20

Weight

0.9 kg

Height

65 mm

Width

88 mm

Depth

195 mm

Safety

EN 60950

Emission

EN-IEC 61000-6-3,EN 55014-1

Immunity

EN-IEC 61000-6-2,EN-IEC 61000-6-1,EN 55014-2

Battery Voltage

DC Output Voltage

Max Charge Current

Product family

Isolated
