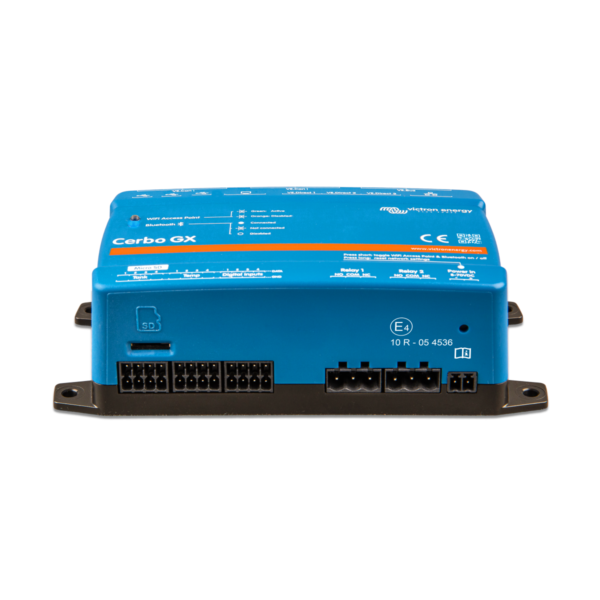

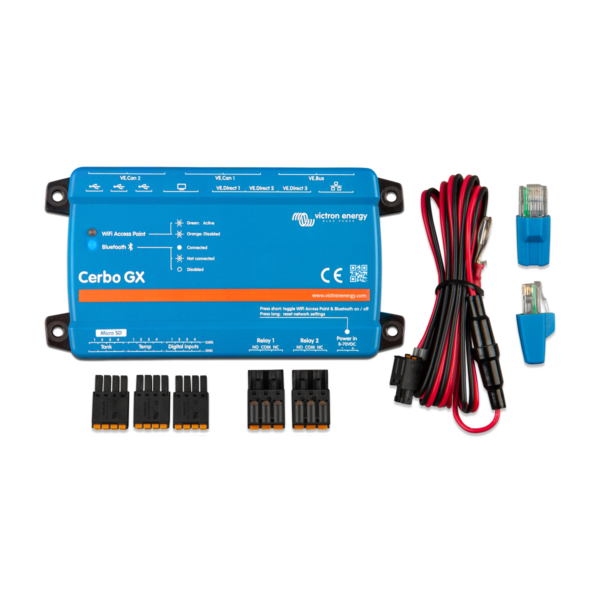

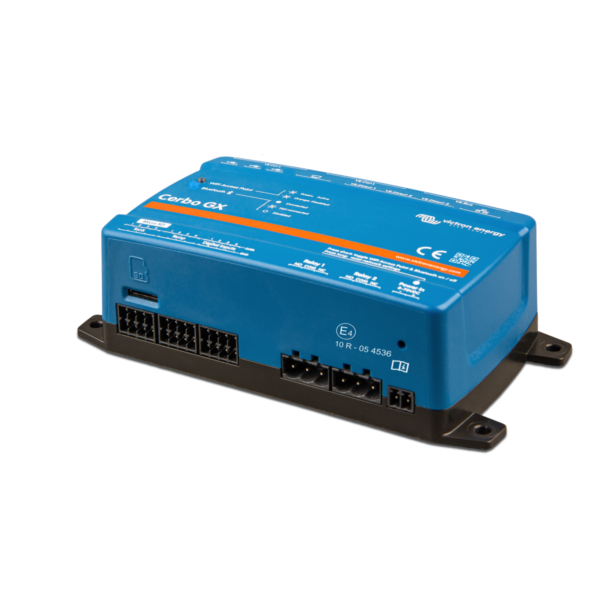

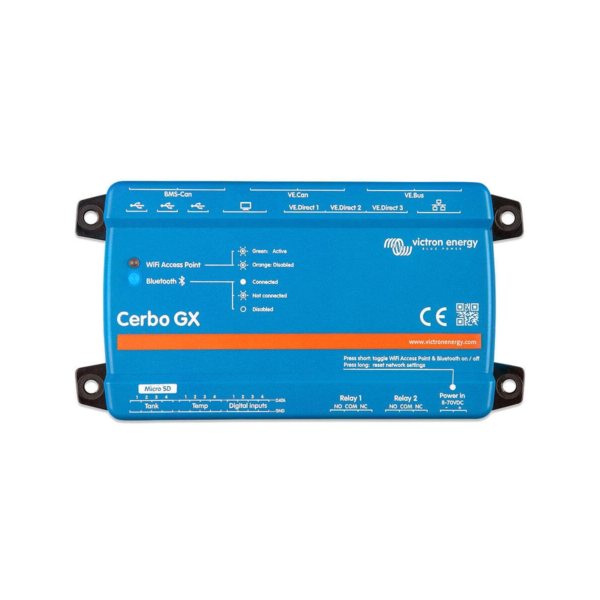

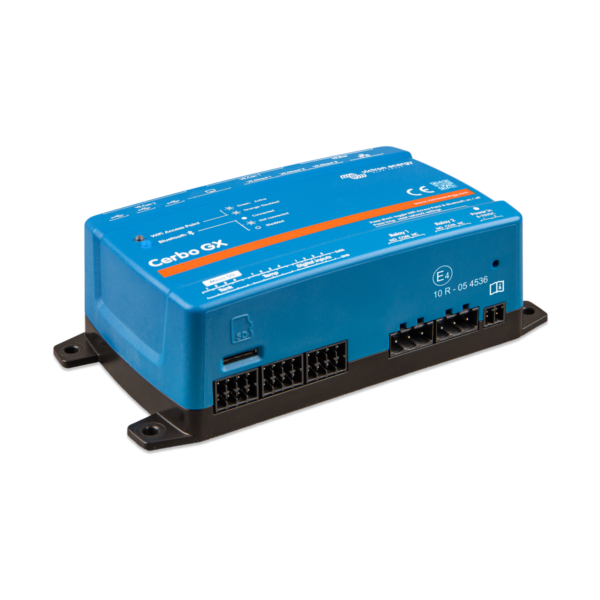

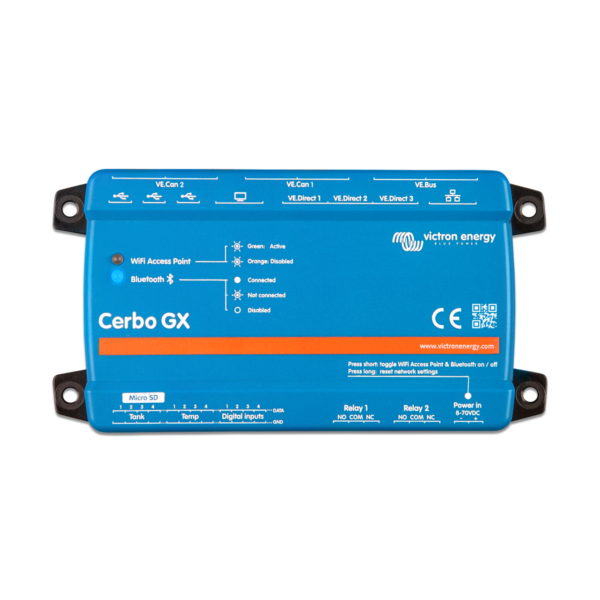

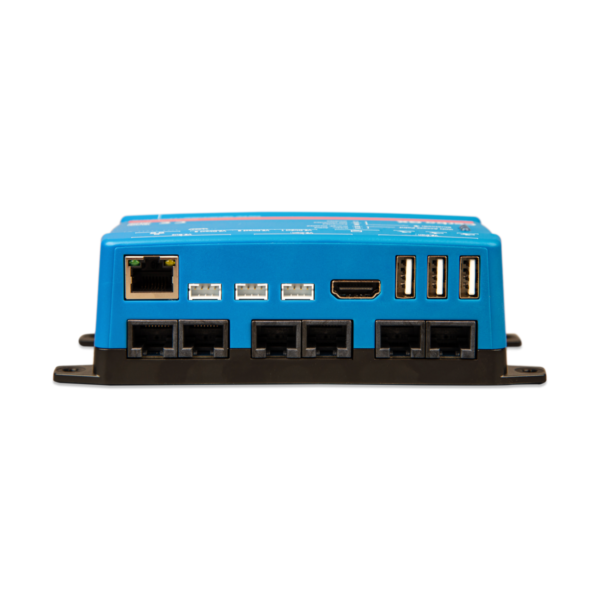

Cerbo GX MK2

Name: Cerbo GX MK2 - Authorized Victron Dealer - Blue Energy
SKU: BPP900450110
Price: 278.00 USD
Availability: BackOrder

SKU: BPP900450110 Category: Victron GX Products Brand: Victron

$278.00

AvailableShips next business day

Extra Features

Premium Quality
Secure Payments
Satisfaction Guarantee
Worldwide Shipping
Money Back Guarantee

Guaranteed Safe Checkout

This all-new communication-centre allows you to always have perfect control over your system from wherever you are and maximises its performance. Simply connect through our Victron Remote Management (VRM) portal, or access directly, using the separate GX Touch, a MFD or our VictronConnect App thanks to its built-in WiFi Access Point. This latest addition to the GX-range combines all the best of connectivity, redefining smart power solutions in every way.

Watch the new video that explains all there is to know about installing the new Cerbo GX & GX Touch 50.

Weight	0.8 lbs
Dimensions	4.7 × 8.7 × 2.4 in
Supply Voltage Range	[8, 70] V
Power Draw	2.8 W
Power Draw Touch	3.8 W
Power Draw Touch On	4.8 W
Mounting	Wall or DIN rail 35mm (optiona ac
Ve Direct	3 (max. possible VE.Direct devices: 15)
Ve Bus	2 paralleled RJ45 sockets
Ve Can	Yes VE.Can 1 isolated VE.Can 2 non-isolated
Bluetooth	Yes
Ethernet	10/100 RJ45 socket – isolated except shield
Wifi	Built-in
Usb	3 USB Host ports
Resistive Tank Level Inputs	4
Temperature Sense Input	4
Digital Inputs	4
Relays	2
Relay Type	NO/NC, DC up to 30VDC: 6A, DC up to 70VDC: 1 A, AC: 6A, 125VAC
Colour	Blue (RAL 5012)
Protection Category	IP20
Height	78 mm
Width	154 mm
Depth	48 mm
Safety	IEC 62368-1
Emission	EN 3011489-1,EN 3011489-17
Automotive Directive	ECE R10-6
